4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS

Brand Name : RECODA

Model Number : M705

Certification : CE / FCC / ROHS

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5,000 pcs / month

Delivery Time : 3-5 days after receiving your payment

Packaging Details : one pcs per box, eight pcs per carton

Video Compression : H.264

Recording Resolution : CIF, HD1, D1，max 2chD1+2chCIF

Basic function : 4 camera recording, alarm system, G-sensor, RS232 sensor, intercom

Feature : Shaking-proof, drop-proof, data encrypt protect

Storage media : 1TB harddisk&64GB SD card

App : Clients, Playback, Server Setup&Tool,Wifi download

Alarm : 6ch alarm input, 1ch alarm output

OS : Linux

Graphics Operation Interface : System parameters can be set through external display and remote controller

Video and Preview /Video Input, Output : 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD : Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format : Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream : Supported

Preview Function : Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate : PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Price : negotiation

Contact Now

4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi, GPS



Features:



1. H.264 Video compression format
2. Support 1 to 4 channels video input
3. Built-in 3G (CDMA, TD-SCDMA, EVDO), WiFi ,GPS, G sensor (optional)
4. Support IP call function (optional)
5. G.726 audio compression, 4CH audio input, 1CH audio output
6. With the special UPS technology
7. 6CH alarm input (Level input), 1CH alarm output (Relay output)
8. RS232 interface for remote control; RJ45 10M/100M Ethernet port.
9. ASF video file format can be played by VLC
10. Support 1 channel or 4 channels synchronous playback
11. Storage: Maximum 1TB hard disk AND and 128GB SD card
12. Support HDD heater funtion
13. Other start- or close- mode including ACC on, timed turn on/off, manual boot/shutdown
14. 8V to 36V input, 12V/1.5A output

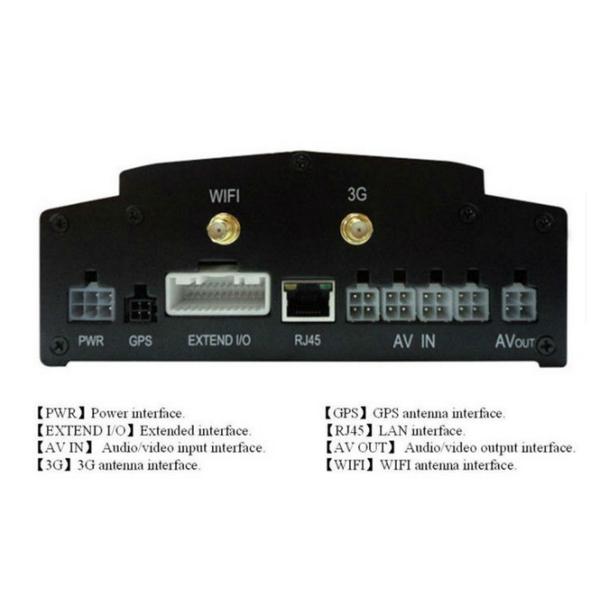

Internal Diagram Structure: 4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS







Product's Picture:






4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS

4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS



Specifications:



Operation system Linux
GUI Setup system parameters with remote controller
Video Compression H.264. Hisilicon high performance processor is applied
Video resolution CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF
Audio Compression G.726
Storage media Support 1TB hard disk and 64GB SD card
Recording File format ASF/ FAT32
Recording mode Startup recording by default, support timing, alarm & event trigger, manual recording
Alarm 6-channel alarm input, 1-channel alarm output
Communication interface RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional) Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi, GPS, G-sensor
Power-off protection Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs
Dimension 160(W) x62(H) x200(D) mm
Weight Net weight: 2200g, gross weight: 3500g



M705 Packing list:



M705 Packing List (3G+GPS+WIFI)

Number

Parts name

Count

Remarks

1

M705 host machine

1



2

The power input line

1



3

Multi-function audio and video input and output extension line

5



4

Video extension cord(3 M)

5



5

Audio and video input and output line

1



6

Remote control

1



7

Key

1



8

3G Antenna

1



9

GPS Antenna

1



10

WIFI Antenna

1



11

Data CD

1





Software:



4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS



4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS





Diagram:



4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS

Applications:



4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS4Ch HDD Mobile DVR Truck Monitoring Digital DVR Support Andriod / IOS 4-Camera Industry-Grade Integrating 3G, Wi-Fi,GPS
